特點：

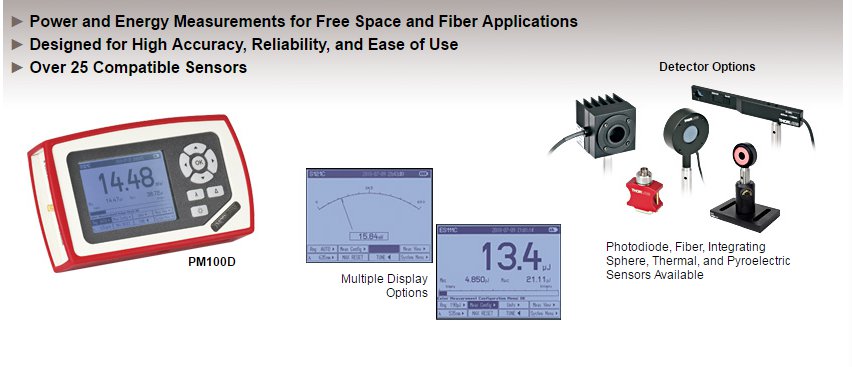

· 小型手持式功率和能量計表頭
· 4英寸大屏LCD顯示
· 內(nei) 置長壽命鋰電池
· 2 GB SD卡用於(yu) 數據存儲(chu)
· 表頭經校準且包含校準證書(shu)
· 1 GB U盤，內(nei) 含軟件(包括LabVIEW™、LabWINDOWS™ /CVI驅動)和操作手冊(ce)
· 存儲(chu) 箱可以存儲(chu) 表頭和一個(ge) 探頭
常用探頭選擇：
Item #a | S401C | S405C | S415C | S425C |
Wavelength Range | 190 nm - 20 µm | 190 nm - 20 µm | 190 nm - 20 µm | 190 nm - 20 µm |
Optical Power Range | 10 µW - 1 W (3 Wb) | 100 µW - 5 W | 2 mW - 10 W (20 Wb) | 2 mW - 10 W (20 Wb) |
Input Aperture Size | Ø10 mm | Ø10 mm | Ø15 mm | Ø25.4 mm |
Active Detector Area | 10 mm x 10 mm | 10 mm x 10 mm | Ø15 mm | Ø27 mm |
Max Optical Power Density | 500 W/cm² (Avg.) | 1.5 kW/cm² (Avg.) | 1.5 kW/cm² (Avg.) | 1.5 kW/cm² (Avg.) |
Linearity | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Resolutionc | 1 µW | 5 µW | 100 µW | 100 µW |
Measurement Uncertaintyd | ±3% @ 1064 nm | ±3% @ 1064 nm | ±3% @ 1064 nm | ±3% @ 1064 nm |
±5% @ 190 nm - 10.6 µm | ±5% @ 250 nm - 17 µm | ±5% @ 250 nm - 17 µm | ±5% @ 250 nm - 17 µm |
Response Timee | 1.1 s | 1.1 s | 0.6 s | 0.6 s |
Cooling | Convection (Passive) | Convection (Passive) |
|
Housing Dimensions | 33.0 m x 43.0 mm x 15.0 mm | 40.6 mm x 40.6 mm x 16.0 mm | 50.8 mm x 50.8 mm x 35.0 mm | 50.8 mm x 50.8 mm x 35.0 mm |
(Without Adapter) | (1.30" x 1.69" x 0.59") | (1.60" x 1.60" x 0.63") | (2.00" x 2.00" x 1.38") | (2.00" x 2.00 |
